BOS Gradient Filter element is the first of its kind, with seamless design and true gradient density. This absolute rated element provides users with the depth of a cartridge and the convenience of a bag. This 100% polypropylene microfiber product adsorbs up to 16 times its own weight in hydrocarbons (oils) and will last up to 18 times the life of other products (depending on particle distribution and application). Seadon's BOSG filter bag is independently developed and is a direct replacement to FSI BOS gradient filter bags.

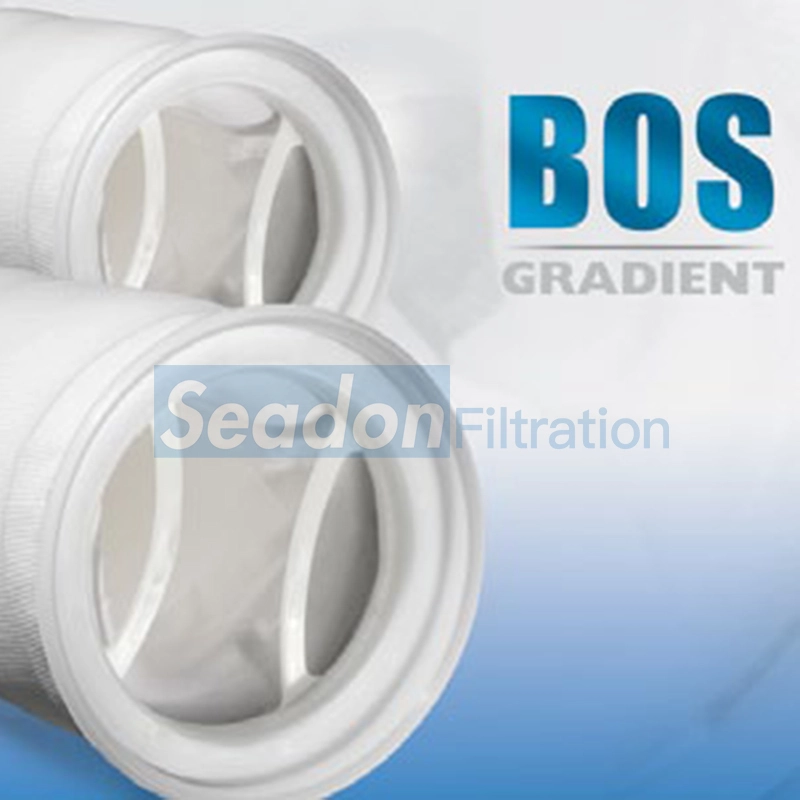

BOSG Gradient Seamless Filter Bags
MATERIAL
Polypropylene
MEDIA TYPE
Microfiber
EFFICIENCY
Absolute
DESIGN
Oil Absorption
Features
- Up to 18 times extended life compared to other products, dependent upon particle distribution and application
- Longer life means fewer bag changes which results in lower labor costs and less loss of product
- Not compressible in operation providing greater dirt holding capacity
- Designed for typical broad particle distribution applications.
- Will allow more efficient filtration (lower micron) without sacrificing product life
- Adsorbs up to 16 times its own weight in hydrocarbons (oils)
- Inventory reduction. Eliminates need for stocking “oil” bags
- Thermally bonded, with no lubricants or surface active agents
Applications
- Oil absorption
- Water filtration
- Process water
- Membrane prefilters
- Food and beverages
- Prefilters for water bottling
- Beer and wine
- Chemicals
- Inks and dyes
Specifications
Material
Polypropylene microfiber seamless
Seal Rings
Welded polypropylene FSI PolyLoc ring
Micron Ratings
3, 5, 10, 25, 50, 75, 100, 125μm
Bag Size
#2: Φ7″ x 32″ (180 x 810 mm)
Filter Area
#2: 0.48 m2 (5.2 ft2)
Max. Flow Rate
#2: 18 m3/h (80 gpm)
*For liquids with a dynamic viscosity of 1 mPa·s @
20°C (68°F).
Max. Operating Temp.
71°C (160°F)
Suggested Differential Pressure
2.4 bar (35 PSIG) max – dirty
0.7~1 bar (10~15PSIG) optimum change out
How to Order?
