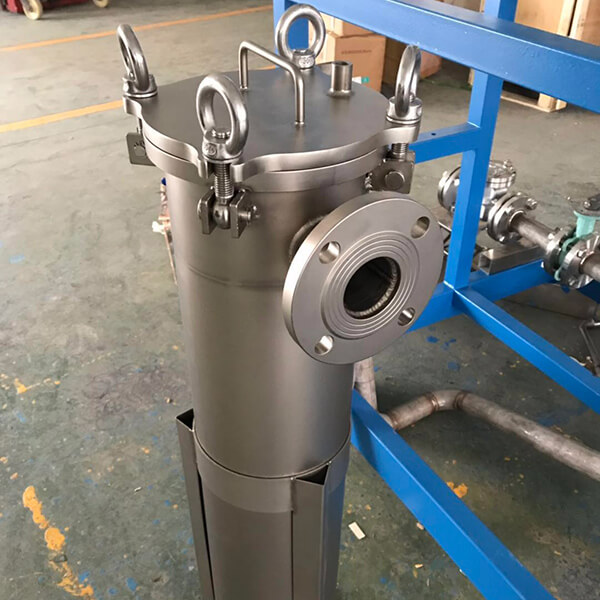

Seadon’s FBS filter vessel is a durable and reliable single bag filter housing in side-entry design. FBS series is a direct replacement for FSI BFN vessel. It features a laser cutting plat cover with swing bolt closure. A welded handle at the top of the cover makes opening easier and one of the hinged eyebolts makes cover holding safer. Housings come standard with filter bag size 1, 2, 3, and 4 stainless steel restrainer baskets.
FBS series Bag Filter Housings
# BAGS
1
CLOSURE
Eyebolt
COVER
Flat
DESIGN
Side Entry
Features
- A plat cover by laser cutting
- A welded handle for easy opening
- The hinged swing bolt makes cover holding safer
- Swing bolt closure for easy opening
- Electro-polished stainless steel perforated baskets
- Electro-polished stainless steel perforated restrainer basket offers perfect filter bag support.
- Double-step adaptor plate for positive filter bag sealing
- ring cover seal
- Adjustable height legs (std.) or wall mounting brackets
- Duplex and multi-plex units are available
Applications
- Automotive
- Food and beverage
- Chemical processing
- Paints, inks, resins and coatings
- Electronics
- Petrochemicals
- Municipal water treatment
- Industrial water treatment
- Pulp and paper
- Pharmaceutical
- Lubricants, metalworking fluids
- Solvents
Specifications
Model
BFN
Bag QTY
Single
Cover Closure
Eye bolt
Design Pressure
10 bar (145 psi)
Design Temperature
100°C (212°F)
*depends on the sealing material and filter element
Bag Size
#1: Φ7″ x 17″ (Φ178 x 430 mm)
#2: Φ7″ x 32″ (Φ178 x 810 mm)
#3: Φ4″ x 9″ (Φ100 x 230 mm)
#4: Φ4″ x 15″ (Φ100 x 380 mm)
Filter Area
#1: 0.24 m2 (2.6 ft2)
#2: 0.48 m2 (5.2 ft2)
#3: 0.08 m2 (0.9 ft2)
#4: 0.16 m2 (1.7 ft2)
Max. Flow Rate
#1: 18 m3/h (80 gpm)
#2: 34 m3/h (150 gpm)
#3: 6 m3/h (25 gpm)
#4: 12 m3/h (50 gpm)
*depends on the filter bag specifically
Micron Rating
1~1500μm
*depends on filter bag
Cover Material
SS304 (1.4301), SS316L (1.4404)
Housing Material
SS304 (1.4301), SS316L (1.4404)
Leg Material
SS304 (1.4301)
Bolt and Nut Material
SS304 (1.4301)
Sealing Material
Nitrile (Buna-N) *std.
Silicone
Viton
EPDM
PTFE encapsulated viton
PTFE
Outer Finish
Glass bead blasting *std.
Brushed
Mirror polishing
Electro-polishing
Inner Finish
Glass bead blasting *std.
Electro-polishing
120 mesh polishing
Food grade polishing
Halar (PTFE) coated
Inlet/Outlet
DN32~DN80 (1-1/4”~3”)
Connection Standard
HG/T 20592-2009 flange (compatible DIN)
HG/T 20615-2009 flange (compatible ANSI/ASME B16.5)
GB/T 7307-2001 internal thread (compatible BSP)
NPT internal thread
Tri-clamp ferrule (DIN 32676 / ISO 2852 / ASME BPE)
How to Order?
