HTNG high temperature Nomex felt filter bags is made of Nomex needle felt for liquid filtration. Nomex is also known as Meta-Aramid. It is suitable for liquid filtration in high temperature field. The max. operating temperature can be 205°C (401°F). The micron ratings are available in 5, 10, 25, 50, 100.

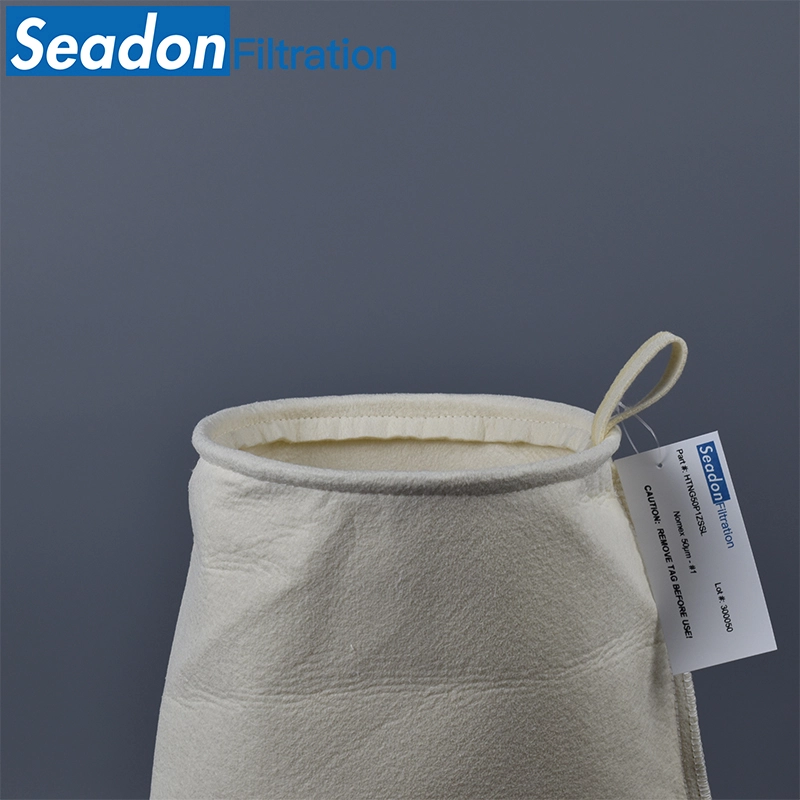

HTNG Nomex Felt Filter Bags
MATERIAL
Meta-Aramid
MEDIA TYPE
Needle Felt
EFFICIENCY
Nominal
DESIGN
High Temperature
Features
- High temperature
- Glazed finish to reduce fiber migration
- Single layer felt construction
- Heavy-duty sewing thread to provide higher strength
- Sewn by high-speed industrial sewing machine without silicone oil cooling, which will not cause silicone oil pollution
Applications
- High temperature filtration
- Abrasion & Flex
- Alkali
Specifications
Material
meta-aramid(Nomex) felt, high temperature
Seal Rings
Sewn zinc-pleated steel ring
Sewn SS 304 ring
Sewn SS 316L ring
Micron Ratings
5, 10, 25, 50, 100μm
Bag Size
#1: Φ7″ x 17″ (180 x 430 mm)
#2: Φ7″ x 32″ (180 x 810 mm)
Filter Area
#1: 0.24 m2 (2.6 ft2)
#2: 0.48 m2 (5.2 ft2)
Max. Flow Rate
#1: 18 m3/h (80 gpm)
#2: 34 m3/h (150 gpm)
*For liquids with a dynamic viscosity of 1 mPa·s @20°C (68°F).
Max. Operating Temp.
HTNG: 205°C (401°F)
Suggested Differential Pressure
2.4 bar (35 PSIG) max – dirty
0.7~1 bar (10~15PSIG) optimum change out
*Depending on the respective application requirements.
