Seadon's LCR 100 & 500 series are absolute rated polypropylene melt-blown filter bags. They are a direct replacement for the Eaton LOFCLEAR 100 & 500 series filter bags. As a perfect equivalent, their performance is very close. LCR 100 is composed of three layers, and LCR 500 is a multi-layer structure. It consists of polypropylene felt, polypropylene microfiber and polypropylene polypropylene membrane multi-layer structure. The complex structure is for achieve high removal efficiency, high holding capacity and high oil absorbent capacity. LCR 100 & 500 series are ideally suited to the oil removal application of the painting industry. It is also very suitable for the key filtration of PCB and microelectronic industry.

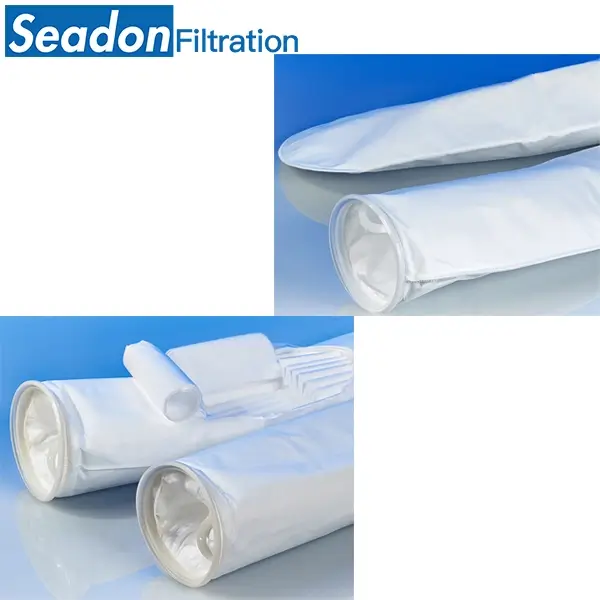

LCR Absolute Rated Filter Bags
MATERIAL
Polypropylene
MEDIA TYPE
Melt-blown
EFFICIENCY
Absolute
DESIGN
Oil Absorption
Features
- High particle removal efficiency exceeds 99%
- Meltblown polypropylene microfiber filter media provides high particle removal efficiency for high quality filtration
- No silicone is intention ally used in materials of construction or in manufacturing
- Spunbond cover layer virtually eliminates fiber release and migration
- FDA compliant according to CFR Title 21
Applications
- Filtration of high-purity fluids with low particulate concentration
- First pass guard filtration
- Oil adsorption
- Activated carbon removal
Specifications
Material
polypropylene microfiber
Cover
Spunbond polypropylene
Seal Rings
Welded polypropylene Eaton SENTINEL ring
Micron Ratings
113/123, 114/124, 115/125, 116/126, 118/128, 119/129, 130, 135, 522, 525, 527, 529
Bag Size
#1: Φ7″ x 17″ (180 x 430 mm)
#2: Φ7″ x 32″ (180 x 810 mm)
Filter Area
#1: 0.24 m2 (2.6 ft2)
#2: 5.2 ft2 (0.48 m2)
Max. Flow Rate
LCR100-#1: 8 m3/h (35 gpm)
LCR100-#2: 15 m3/h (66 gpm)
LCR500-#2: 12 m3/h (53 gpm)
*For liquids with a dynamic viscosity of 1 mPa·s @ 20°C (68°F).
Max. Operating Temp.
90°C (194°F)
Suggested Differential Pressure
2.4 bar (35 PSIG) max – dirty
0.7~1 bar (10~15PSIG) optimum change out
*Depending on the respective application requirements.
