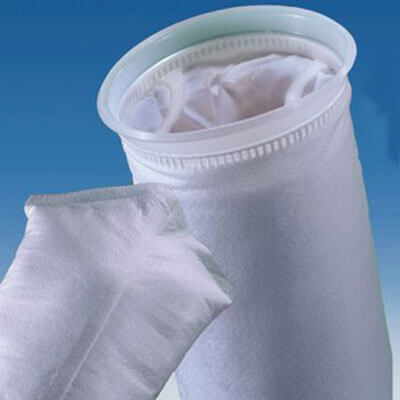

The MAXPONG series Heavy Duty Extended Life filter bag is the leader in high-efficiency, low-cost filtration. Its seamless micro-fiber graded density cartridge insert removes trace oils that frequently occur in process fluids, and provides up to four times the dirt-holding capacity of conventional polypropylene bags. Combined with its welded seam felt cover and PolyLoc® ring for elimination of unfiltered bypass, it becomes the perfect choice for uses where longer-lasting, high-efficiency filter bags are needed. The MAXPONG series Heavy Duty Extended Life filter bag is ideal for continuous flow applications such as e-coat and phosphate baths, and batch applications including oils, edible oils and syrups, or any final or polishing filter requirements.
MAXPONG Felt Filter Bags
MATERIAL
Polypropylene
MEDIA TYPE
Needle Felt
EFFICIENCY
Nominal
DESIGN
High Dirt Holding
Features
- High-efficiency, low-cost filtration is ideal for continuous flow applications
- Welded seam construction eliminates unfiltered bypass due to needle holes
- Large dirt-holding capacity and lower pressure drop provide long service life
- Adsorbs smaller particles and filters wide range of particle sizes
- Pure polypropylene microfiber insert contains no sizing, bonding adhesive, resin, lubricant, silicone or antistatic chemicals
- PolyLoc® ring creates hermetic seal to prevent liquid bypass
- Polypropylene materials meet the regulations for food contact use under FDA CFR21
Applications
- Electro Coating
- Phosphate baths
- Oils, edible oils and syrups
Specifications
Material
MAXPONG: PP felt with polypropylene insert
Seal Rings
Welded polypropylene/polyester FSI PolyLoc ring
Micron Ratings
1, 5, 10, 25, 50, 100μm
Bag Size
#1: Φ7″ x 17″ (180 x 430 mm)
#2: Φ7″ x 32″ (180 x 810 mm)
Filter Area
#1: 0.24 m2 (2.6 ft2)
#2: 0.48 m2 (5.2 ft2)
Max. Flow Rate
#1: 18 m3/h (80 gpm)
#2: 34 m3/h (150 gpm)
*For liquids with a dynamic viscosity of 1 mPa·s @ 20°C (68°F).
Max. Operating Temp.
90°C (194°F)
Suggested Differential Pressure
2.4 bar (35 PSIG) max – dirty
0.7~1 bar (10~15PSIG) optimum change out
*Depending on the respective application requirements.
How to Order?
