Seadon's NAF series is a liquid filter bag that can remove nano particles. High performance nanofiltration materials were independently developed by Seadon. NAF series is specially developed for wanted copper powder filtration in PCB manufacturing process. It is also suitable for the filtration application of all kinds of wanted or unwanted small hard particles.

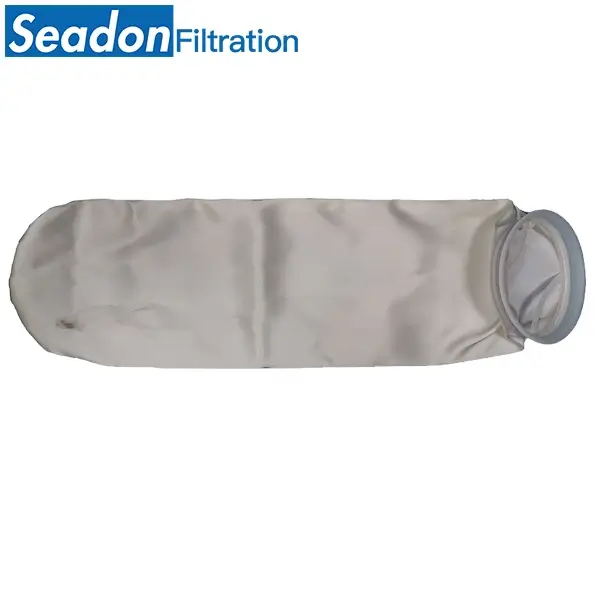

NAF Nanoscale Filter Bags
MATERIAL
Composites
MEDIA TYPE
Woven Fabrics
EFFICIENCY
High (Nanoscale)
DESIGN
Ultra-fine Filtration
Features
- Nano filtration for tiny hard particles
- SENTINEL or POLYLOC seal ring provides 100% bypass-free filtration
- High performance nano filtration material
- Fully-welded construction
- Ultrasonic hot-melting tech for fully-welded construction, without any chemical binder
Applications
- Wanted copper powder recovery filtration
- All kinds of wanted or unwanted small hard particles
Specifications
Material
high performance fabric
Seal Rings
Welded polypropylene/polyester FSI PolyLoc ring
Welded polypropylene/polyester Eaton SENTINEL ring
Micron Ratings
nanofiltration
Bag Size
#1: Φ7″ x 17″ (180 x 430 mm)
#2: Φ7″ x 32″ (180 x 810 mm)
#5(X01): Φ6″ x 20″ (152 x 510mm)
Filter Area
#1: 0.24 m2 (2.6 ft2)
#2: 0.48 m2 (5.2 ft2)
#5(X01): 0.19 m2 (2 ft2)
Max. Flow Rate
#1: 18 m3/h (80 gpm)
#2: 34 m3/h (150 gpm)
#5(X01): 16 m3/h (70 gpm)
*For liquids with a dynamic viscosity of 1 mPa·s @ 20°C (68°F).
Max. Operating Temp.
90°C (194°F)
Suggested Differential Pressure
2.4 bar (35 PSIG) max – dirty
0.7~1 bar (10~15PSIG) optimum change out
*Depending on the respective application requirements.
