PGF series filter bags constitute a new, high-performance alternative for applications requiring absolute filtration. The multistage filtration, with filter material that gets finer from layer to layer, provides optimum efficiency (greater than 99.9%) and a long operating life. Seadon's PGF bag is a direct replacement for Eaton PROGAF PGF series.

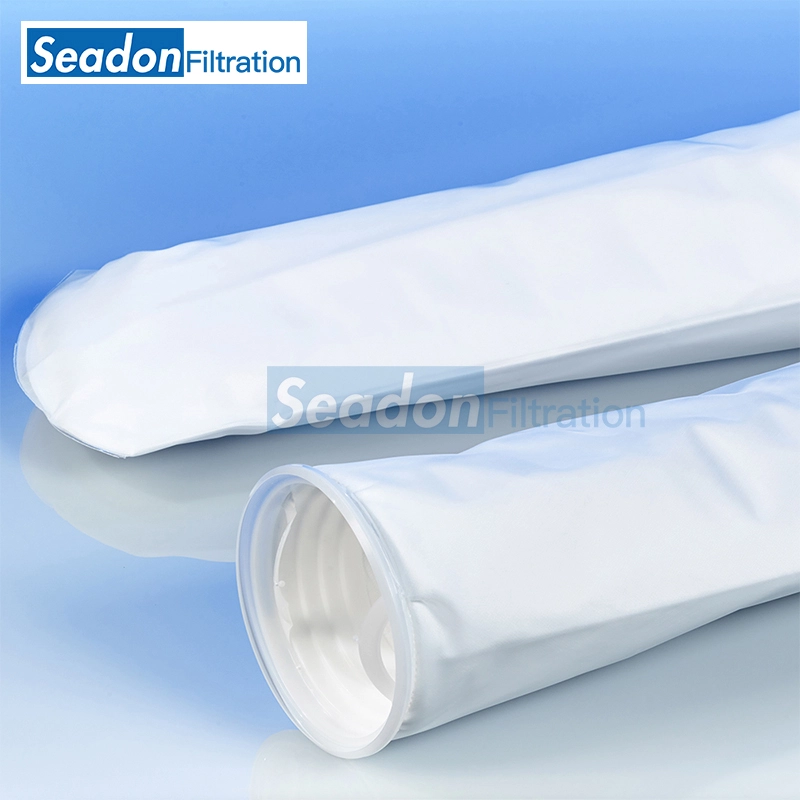

PGF Absolute Rated Filter Bags
MATERIAL
Polypropylene
MEDIA TYPE
Melt-blown
EFFICIENCY
Absolute
DESIGN
Fine filtration
Features
- Fully-welded construction
- The pressure-activated SENTINEL seal ring provides a flexible, chemically resistant seal which adapts to any bag filter housing
- Twelve layers of a medium that gets finer and finer from one layer to the next for absolute filtration
- Silicone-free materials
- Filter bags are made from the finest hydrophobic polypropylene fibers that require wetting with an aqueous solution
- Filter bag insertion tool is recommended
Applications
- Food and beverages
- Pharmaceuticals
- Chemicals
- Inks
- Colors
- Water purification
- Microelectronics
Specifications
Material
Melt-blown polypropylene
Cover
Polypropylene mesh
Seal Rings
Welded polypropylene/polyester Eaton SENTINEL ring
Welded polypropylene/polyester FSI PolyLoc ring
Micron Ratings
1, 2, 12μm @99.9%
Bag Size
#2: Φ7″ x 32″ (180 x 810 mm)
Filter Area
#2: 0.48 m2 (5.2 ft2)
Max. Flow Rate
#2: 10 m3/h (52 gpm)
*For liquids with a dynamic viscosity of 1 mPa·s @ 20°C (68°F).
Max. Operating Temp.
90°C (194°F)
Suggested Differential Pressure
2.4 bar (35 PSIG) max – dirty
0.7~1 bar (10~15PSIG) optimum change out
*Depending on the respective application requirements.
