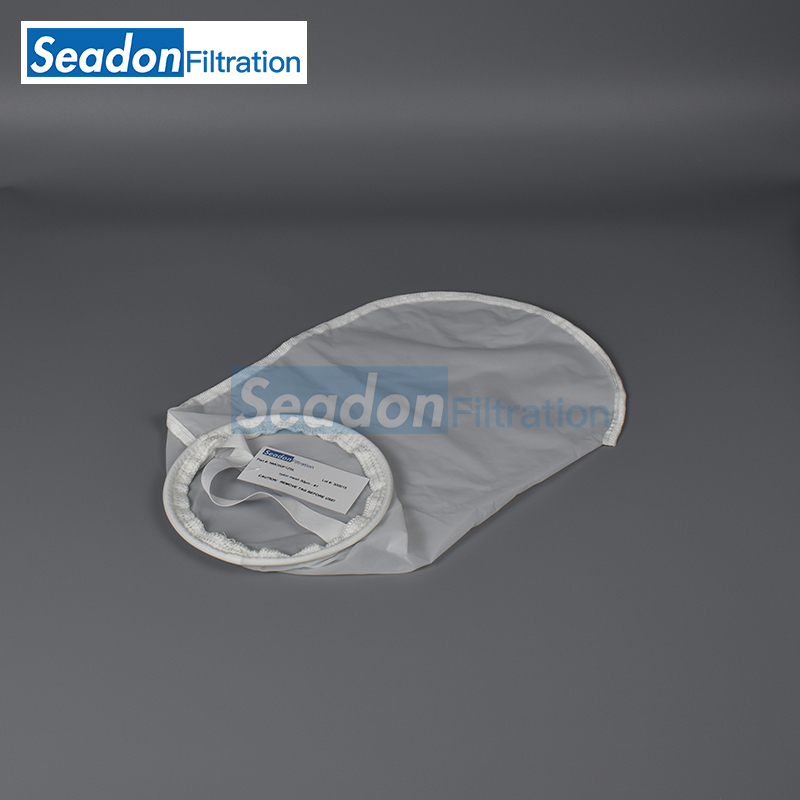

PMO Polypropylene Monofilament Mesh Filter Bags

PMO polypropylene monofilament filter bag is an absolute precision filter bag with 90% filtration efficiency. The difference between PMO polypropylene monofilament filter bag and NMO nylon monofilament filter bag is only in material. This filter bag has high strength, wear resistance, chemical corrosion resistance and high tensile strength. It can be cleaned and reused economically. The filter material and suture used by Seaton are wear-resistant, have extensive chemical compatibility, are not easy to be affected by metal fatigue or corrosion, and have high tensile strength.

The difference between monofilament and multifilament

Monofilament mesh is a kind of woven material, in which each thread is monofilament, which has excellent strength and no fiber migration problem. Particles are easily washed out after being intercepted by the wire mesh.

Multifilament mesh is a kind of woven material, in which each line woven into a mesh is composed of many lines with smaller diameters. Particles are easy to get stuck in the fine lines composed of single strands and are not easy to be cleaned out.

MATERIAL

Polypropylene

MEDIA TYPE

Monofilament Mesh

EFFICIENCY

Nominal

DESIGN

Surface Filtration

Features

  • Absolute surface filtration
  • Reusable or disposable
  • Non-fiber releasing
  • Sewn or welded collor
  • Sewn bag body only
  • Ultrasonic hot-melting tech for fully-welded construction, without any chemical binder
  • 5 thread overlock safety stitch process for sewn filter bag to provide higher strength
  • Sewn by high-speed industrial sewing machine without silicone oil cooling, which will not cause silicone oil pollution

Applications

  • Paint & ink
  • Food & pharmacy
  • Resins
  • Chemicals
  • Aggressive solvents
  • Varnishes

Specifications

Material
PMO: polypropylene monofilament mesh

Seal Rings
Sewn zinc-pleated steel ring
Sewn SS 304 ring
Sewn SS 316L ring
Welded polypropylene/polyester Eaton SENTINEL ring
Welded polypropylene/polyester FSI PolyLoc ring
Welded polypropylene FSI x01 ring

Micron Ratings
100, 150, 200, 250, 300, 400, 600, 800μm

Bag Size
#1: Φ7″ x 17″ (180 x 430 mm)
#2: Φ7″ x 32″ (180 x 810 mm)

Filter Area
#1: 0.24 m2 (2.6 ft2)
#2: 0.48 m2 (5.2 ft2)

Max. Flow Rate
#1: 11~17 m3/h (50~75 gpm)
#2: 22~34 m3/h (100~150 gpm)
*For liquids with a dynamic viscosity of 1 mPa·s @20°C (68°F).

Max. Operating Temp.
110 °C (374 °F) *Only steel ring

Suggested Differential Pressure
2.4 bar (35 PSIG) max – dirty
0.7~1 bar (10~15PSIG) optimum change out
*Depending on the respective application requirements.
