POEX and PEEX series are glazed felt filter bags with single layer extended life felt. They have a lifetime of up to 5 times that of the equivalent standard filter bag. Increased thickness of the filter media compared to that of the equivalent standard felt filter bag enables an increased retention of particles.The default cover is plain(no cover). A polypropylene spunbond cover is optional, for avoiding fiber releasing. It is an ideal choice in the fields of automotive coatings, chemicals, resins and edible oil filtration.

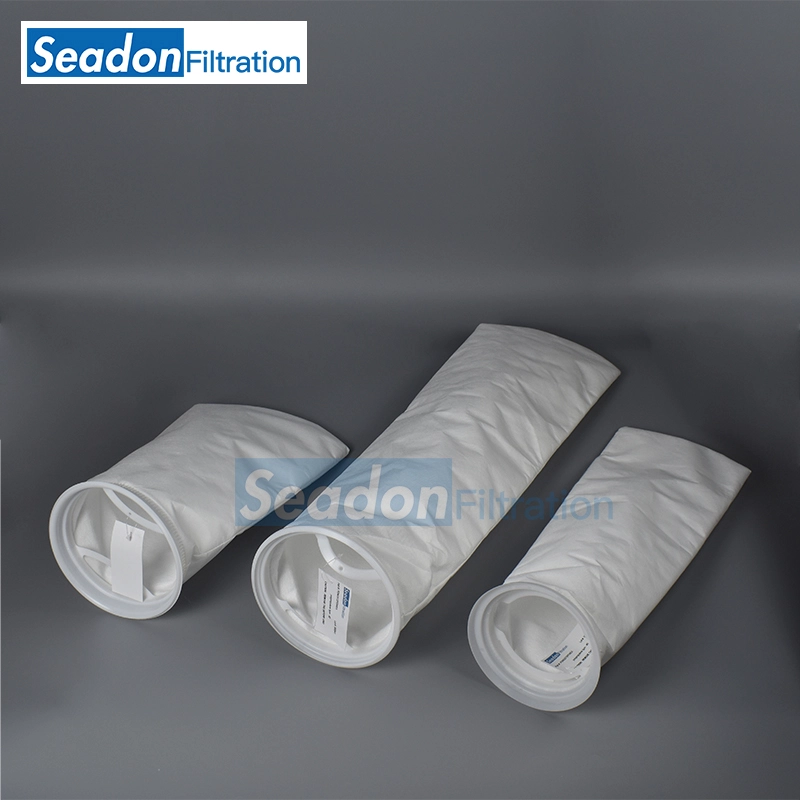

POEX/PEEX Extended Life Felt Filter Bags
MATERIAL
PP & PE
MEDIA TYPE
Extended-life Felt
EFFICIENCY
Nominal
DESIGN
Long Service Life
Features
- Long service time
- Glazed finish to reduce fiber migration
- Single layer extended life felt construction
- Sewn or fully-welded construction
- Broad chemical compatibility
- Ultrasonic hot-melting tech for fully-welded construction, without any chemical binder
- 5 thread overlock safety stitch process for sewn filter bag to provide higher strength
- Sewn by high-speed industrial sewing machine without silicone oil cooling, which will not cause silicone oil pollution
- Polypropylene and Polyester materials meet the regulations for food contact use under FDA CFR21
Applications
- Water treatment
- Paints and varnishes
- Inks
- Resins
- Chemicals
- Aggressive solvents
Specifications
Material
POEX: PP extended life felt
PEEX: PE extended life felt
Seal Rings
Welded polypropylene/polyester Eaton SENTINEL ring
Welded polypropylene/polyester FSI PolyLoc ring
Micron Ratings
1, 3, 5, 10, 25, 50, 75, 100, 150, 200μm
Bag Size
#1: Φ7″ x 17″ (180 x 430 mm)
#2: Φ7″ x 32″ (180 x 810 mm)
#5(X01): Φ6″ x 20″ (152 x 510mm)
Filter Area
#1: 0.24 m2 (2.6 ft2)
#2: 0.48 m2 (5.2 ft2)
#5(X01): 0.19 m2 (2 ft2)
Max. Flow Rate
#1: 18 m3/h (80 gpm)
#2: 34 m3/h (150 gpm)
#5(X01): 16 m3/h (70 gpm)
*For liquids with a dynamic viscosity of 1 mPa·s @ 20°C (68°F).
Max. Operating Temp.
POEX: 90°C (194°F)
PEEX: 140°C (284°F)
Suggested Differential Pressure
2.4 bar (35 PSIG) max – dirty
0.7~1 bar (10~15PSIG) optimum change out
*Depending on the respective application requirements.
How to Order?
ISO9001 certified manufacturer of filter bags, filter cartridges, filter vessels and filter systems.
