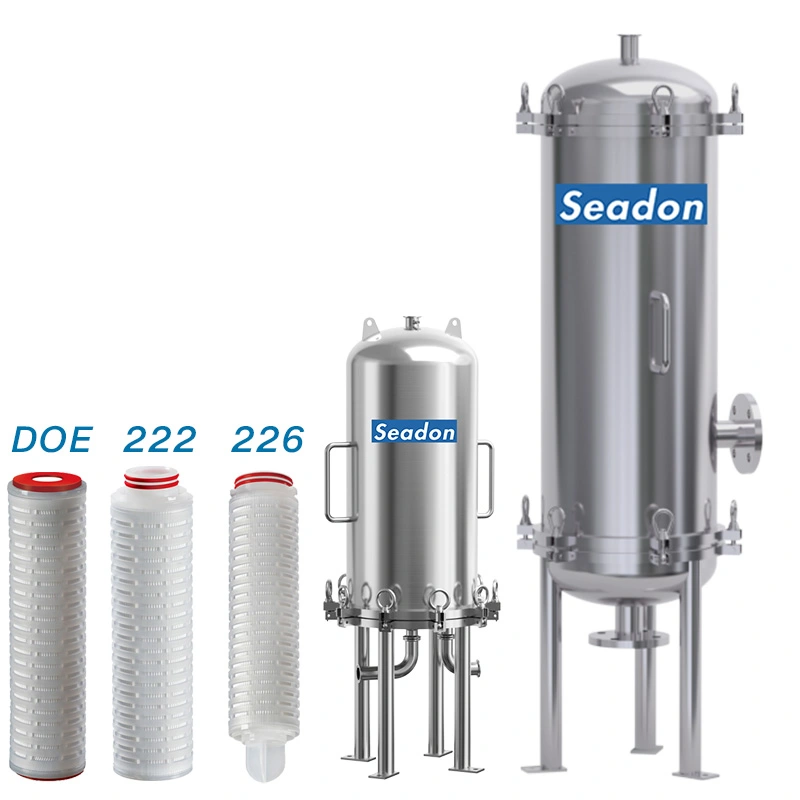

Seadon’s SCF series cartridge filter housing is designed for sanitary application, constructed of polished 304 or 316L stainless steel. The Ra of inner surface roughness is required at 0.3 μm, the outer surface is 0.4 μm. All internal surfaces can be easily cleaned in place. SCF filter is rated for 10 bar (150 psi) pressure and have swing bolts closure for quick opening. Inlets and outlets are available in sanitary tri-clamp ferrule or flange connections. The housings can be configured to use a 222 or 226 style cartridge.
SCF series Cartridge Filter Housings
# CARTRIDGES
3 to 56
CLOSURE
Eyebolt
COVER
Handled or Davit
DESIGN
Sanitary
Features
- All sanitary design
- Easily cleaning in place
- Swing bolt closure for quick opening
- Available in 222 or 226 type cartridge
- Cartridge QTY for 3 through 56 pcs
- Accommodates 10, 20, 30 or 40-inch cartridges
- 304 or 316L stainless steel housings
Applications
- Electronic: high purity water
- Pharmaceutical: antibiotics, liquid medicine
- Food and beverage: alcohol, mineral water, drinking water, dairy
Specifications
Model
SCF
Cartridge number per housing
3-56
Cartridge size
Outer diameter: 65-69mm (2.56″-2.72″)
Length: 10″, 20″, 30″, 40″
Cover closure
swing bolt
Design pressure
10 bar (145 psi) *Others on request
Design temperature
60°C (140°F) *Others on request
Housing material
SS 304 (1.4301), SS 316L (1.4404)
Sealing material
Silicone *std.
Nitrile (Buna-N)
Viton
EPDM
PTFE encapsulated viton
PTFE
Outer finish
brushed *std.
mirror polishing
electro-polishing
Inner finish
food grade polishing *std.
electro-polishing
Halar (PTFE) coated
Inlet/Outlet
DN40-DN300
Connection standard
HG/T 20592-2009 flange (compatible DIN)
GB/T 7307-2001 internal thread (compatible BSP)
HG/T 20615-2009 flange (compatible ANSI)
NPT internal thread
Coupling
ISO 2852-1993 tri-clamp
How to Order?
