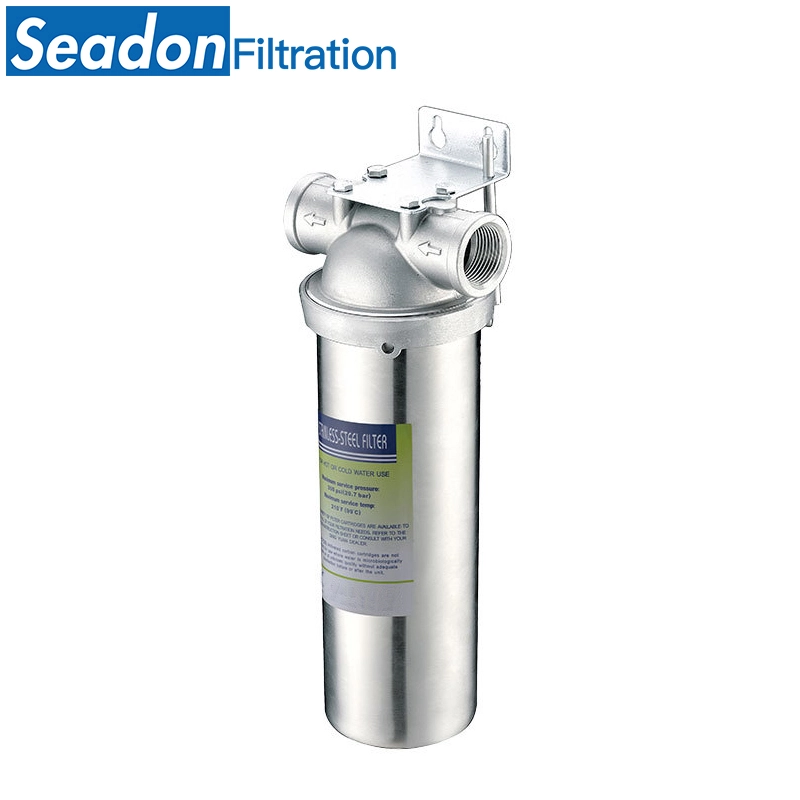

TSC series single cartridge filter housing is made of stainless steel (304 or 316L). It features a casting thread lid, opened by 89 spanner. TSC can be placed a single filter cartridge (222 or DOE), from 5" to 40" length. A plug is installed at the bottom drain outlet by default, and manual drain valve can be selected.
TSC series Single Cartridge Housings
# CARTRIDGES
1
CLOSURE
Thread
COVER
Casted
DESIGN
Commercial or Industrial
Features
- Single cartridge filter housing
- Cartridge length from 5″ to 40″
- Suitable for 222 or DOE filter cartridges
- Casting cover
- 304 stainles steel or 316L stainless steel for choose
Applications
- Domestic / commercial filtration of drinking water
- micro-filtration
- Pre-filtration
- Protection filtration of taps, boilers, washing machines, pumps, heating systems, softeners
Specifications
Model
TSC
Pressure rating
20 bar (300 psi)
Max working temprature
97°C (206°F)
Cartridge number per housing
single
Cartridge size
5″, 10″, 20″, 30″, 40″
Housing material
SS 304, SS 316
Sealing material
Silicone
EPDM
Inlet/Outlet
3/4″, 1″, 1-1/4″, 1-1/2″, 2″
Drain
1/4″, 1/2″
Connection standard
BSP internal thread
NPT internal thread
How to Order?
